AFUE ratings explained: what furnace efficiency really means
AFUE — Annual Fuel Utilization Efficiency — is the percentage of the fuel a furnace turns into usable heat over a year. A 90% AFUE furnace delivers 90% of the fuel as heat and loses 10% up the flue. Standard furnaces are 80%; high-efficiency (condensing) furnaces run 90–98.5%. Higher AFUE costs more upfront but burns less fuel every winter, so it pays back fastest in cold climates.

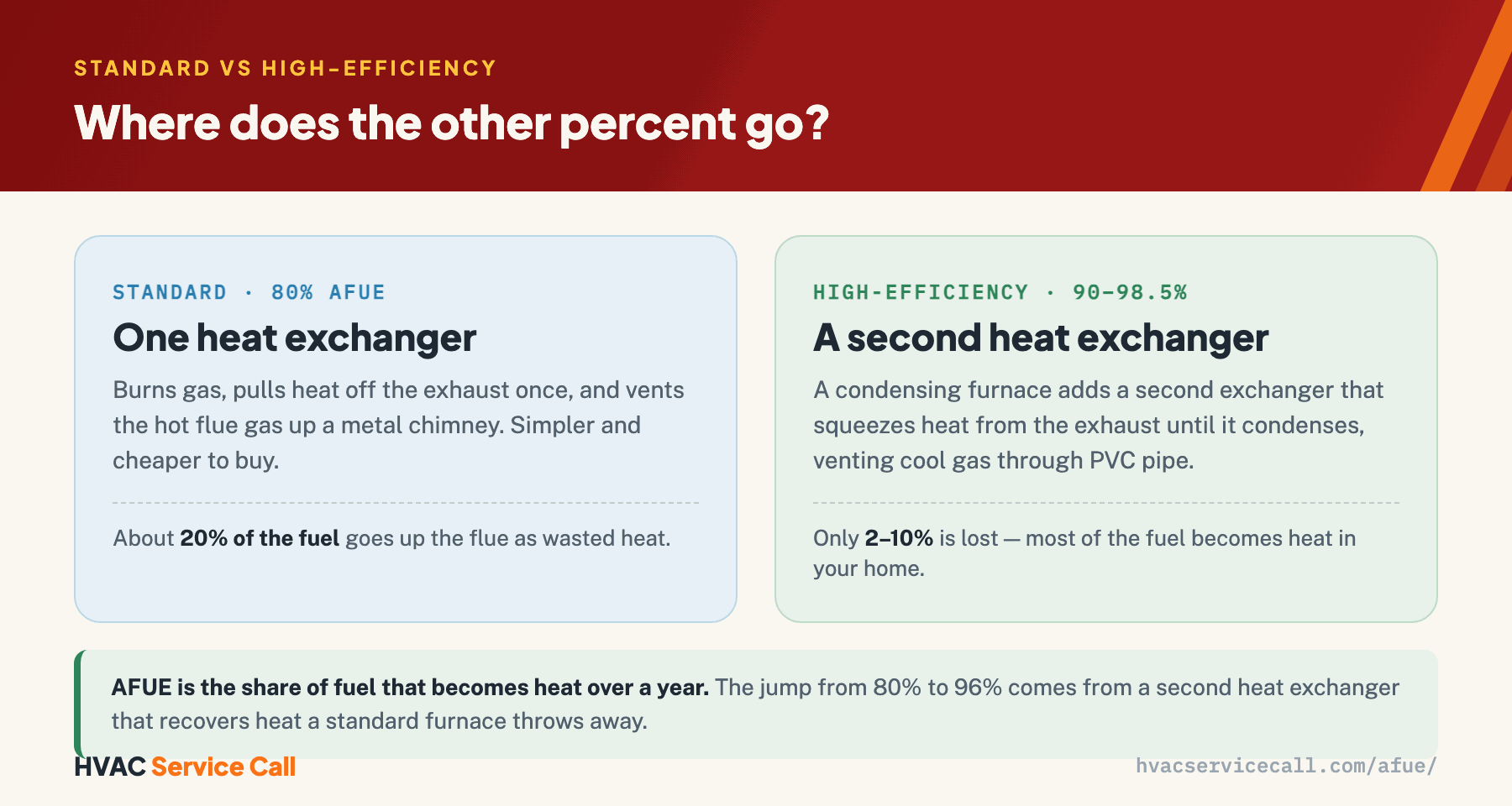

What is AFUE, and where does the wasted fuel go?
AFUE measures how much of the fuel you pay for actually ends up as heat in your home over a heating season, rather than escaping with the exhaust. In a standard 80% furnace, gas burns, a single heat exchanger pulls heat off the exhaust once, and the still-hot flue gas vents up a metal chimney — carrying about 20% of the energy away with it. A high-efficiency condensing furnace adds a second heat exchanger that keeps pulling heat out of the exhaust until it literally condenses, so the gas leaving through its PVC vent is cool and only 2–10% is lost.

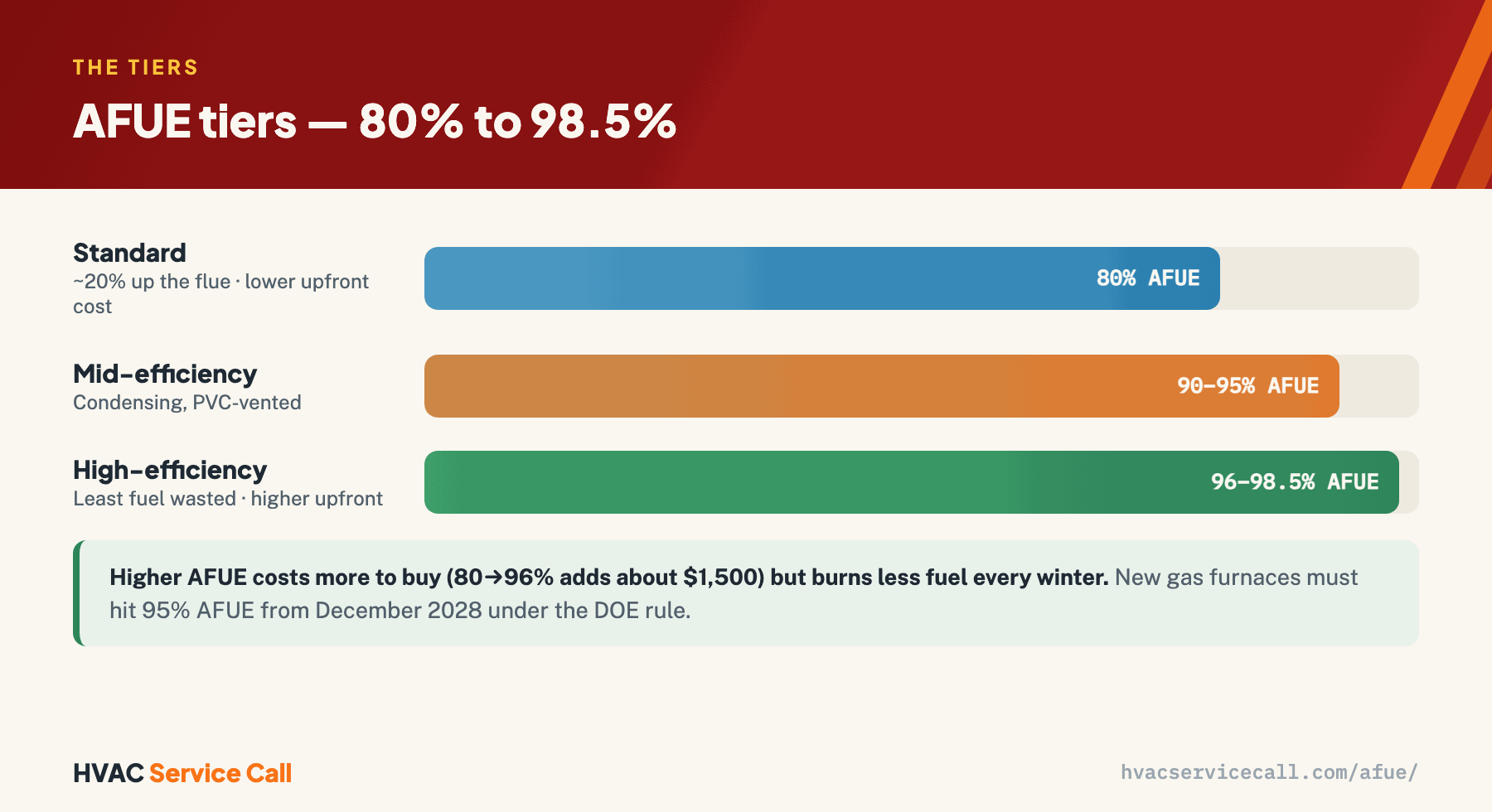

What are the AFUE tiers?
Furnaces fall into three efficiency bands. Standard models are 80% AFUE — the lower upfront cost, with a fifth of the fuel going up the flue. Mid-efficiency condensing furnaces run 90–95%. High-efficiency models reach 96–98.5%, wasting the least fuel but costing the most to buy and, sometimes, to vent. The higher two tiers are condensing furnaces, which need a PVC vent and a condensate drain — a factor if you're converting an older chimney-vented setup.

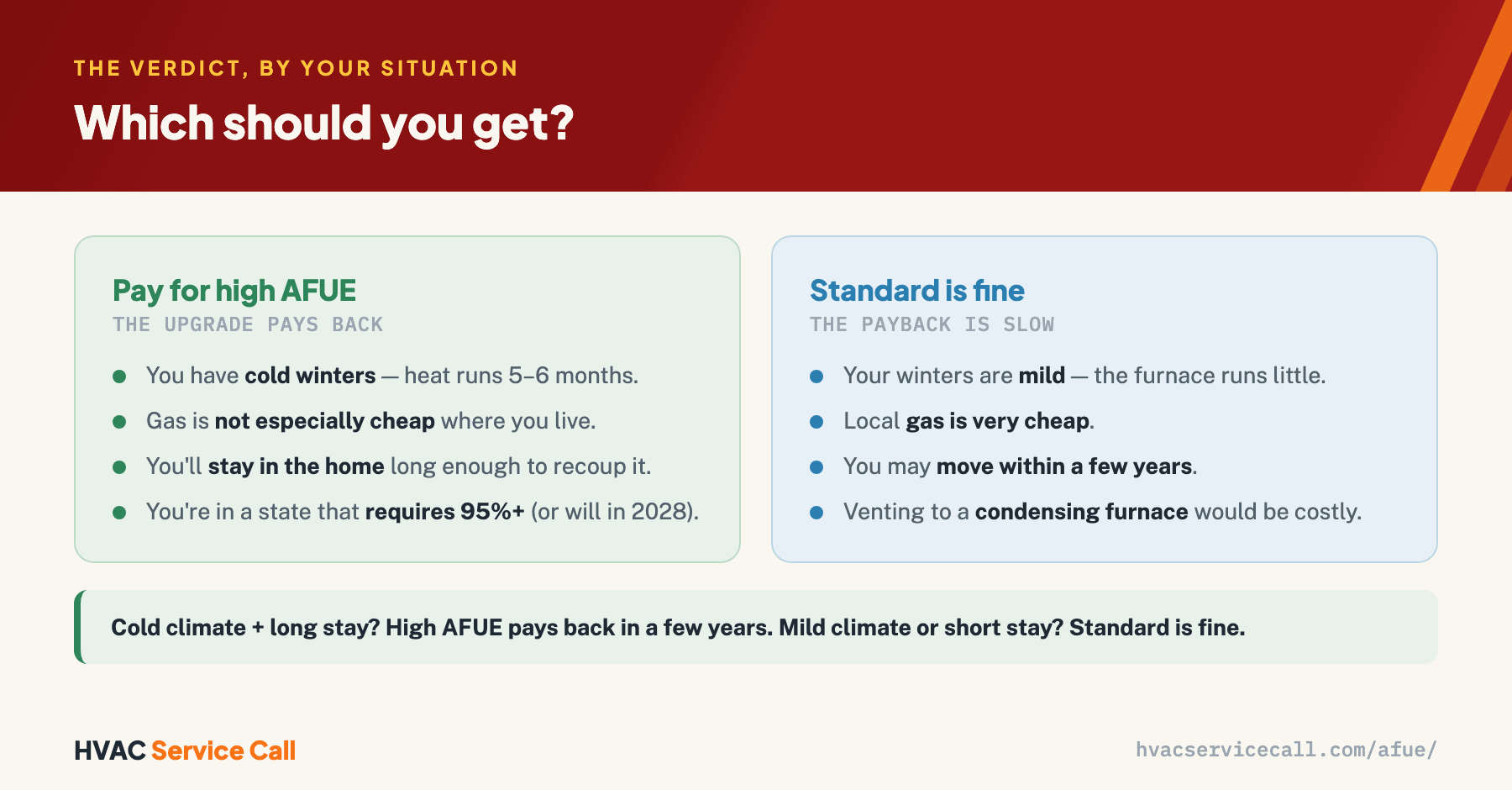

Is a high-AFUE furnace worth the extra cost?
It depends on how much you heat. Upgrading from 80% to 96% AFUE adds roughly $1,500 to the installed price, and in a cold climate where the furnace runs five or six months a year it saves about $200–$400 a year in fuel — a payback of about four to seven years. In a mild climate, or if local gas is very cheap, the furnace runs too little for the savings to catch up quickly, so a standard 80% model can be the better value. Here's the honest split:
Furnace pricing in full: furnace replacement cost.
What about the 2028 efficiency rule?
A U.S. Department of Energy standard requires new residential gas furnaces to meet 95% AFUE starting in December 2028, effectively phasing out the 80% standard furnace for new sales. Until then, 80% units remain available in much of the country, though some states already require higher efficiency. If you're replacing a furnace now, it's worth knowing the direction of travel — a high-AFUE unit is where the market is heading anyway.
AFUE vs. SEER2 vs. HSPF — which is which?
AFUE is the heating number for fuel-burning equipment. Cooling has its own rating, SEER2, and heat-pump heating is measured with HSPF2 — a different scale, because a heat pump moves heat instead of burning it and can deliver more heat than the energy it draws. One place AFUE gets confusing: an electric furnace is 100% AFUE, since all the electricity becomes heat, yet it usually costs more to run than a 96% gas furnace because electricity is pricier per BTU. Efficiency and operating cost aren't the same thing — that comparison is on gas vs electric furnace, and the heat-pump alternative on heat pump vs furnace.
One call routes you to a licensed local contractor for a sizing and quote: (888) 810-2291.
Common questions
What does AFUE mean?
AFUE stands for Annual Fuel Utilization Efficiency. It's the percentage of the fuel a furnace or boiler turns into usable heat over a full heating season — a 90% AFUE furnace delivers 90% of the fuel's energy as heat and loses 10% up the flue.
What is a good AFUE rating?
For a gas furnace, 90% and up is considered high-efficiency, with premium models reaching 96–98.5%. Standard furnaces sit at 80%. In cold climates a high-efficiency model is usually worth it; in mild ones an 80% furnace can make more sense.
Is a 96% AFUE furnace worth the extra cost?
In a cold climate, usually yes. Upgrading from 80% to 96% adds roughly $1,500 to the installed price but cuts fuel use, saving about $200–$400 a year where you heat for five or six months — a payback of about four to seven years. In mild climates the payback is slower.
What is the difference between an 80% and a 96% furnace?
A 96% AFUE furnace is a condensing furnace: it adds a second heat exchanger that pulls extra heat out of the exhaust until it condenses, venting cool gas through PVC pipe instead of a hot metal flue. An 80% furnace has one heat exchanger and sends about 20% of the heat up the chimney.
Is there a minimum AFUE requirement?
Yes, and it's changing. A U.S. Department of Energy rule requires new residential gas furnaces to meet 95% AFUE starting in December 2028. Until then, 80% units remain available in much of the country, though some states already require higher.
Is a 100% AFUE electric furnace better than a 96% gas furnace?
Not on cost. An electric furnace is 100% AFUE because all electricity becomes heat, but electricity costs more per BTU than gas, so a 100%-efficient electric furnace usually costs more to run than a 96% gas one. Efficiency and operating cost are different things.
Does AFUE apply to heat pumps?
No — AFUE measures fuel-burning heat. A heat pump moves heat rather than burning fuel, so its heating efficiency is rated with HSPF2 instead, and its numbers work differently because it can deliver more heat energy than the electricity it consumes.
