Multi-zone mini splits: how many zones, and what they cost
A multi-zone mini split runs several indoor heads — usually two to five — off one outdoor unit, each head its own zone with its own thermostat. It's how a ductless system covers a whole home with room-by-room control and no ductwork. The rule of thumb is one head per area you want to control, and because each head adds roughly $2,000–$4,000, the number of zones is the single biggest thing driving the price.

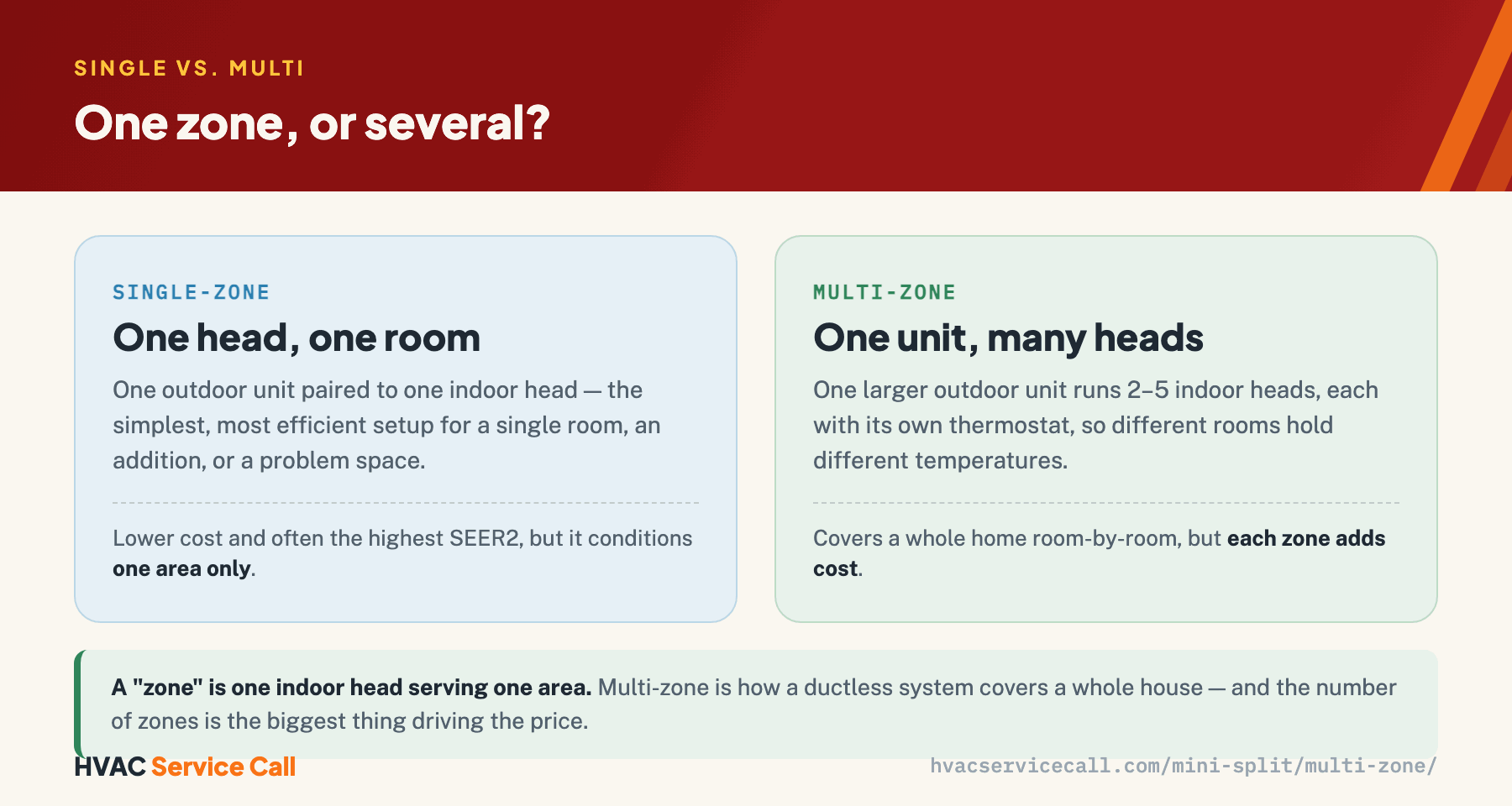

What is a zone, and how does multi-zone work?
A zone is one indoor head serving one area. A single-zone system pairs one outdoor unit with one head — the simplest and often most efficient setup for a single room, an addition, or a space your central system never gets right. A multi-zone system uses one larger outdoor unit to run two to five heads, each on its own thermostat, so the bedroom, the living room, and the office can each sit at their own temperature. It's the whole-home ductless configuration.
New to ductless? Start with what is a ductless mini split, or compare it to ducted on mini split vs central air.

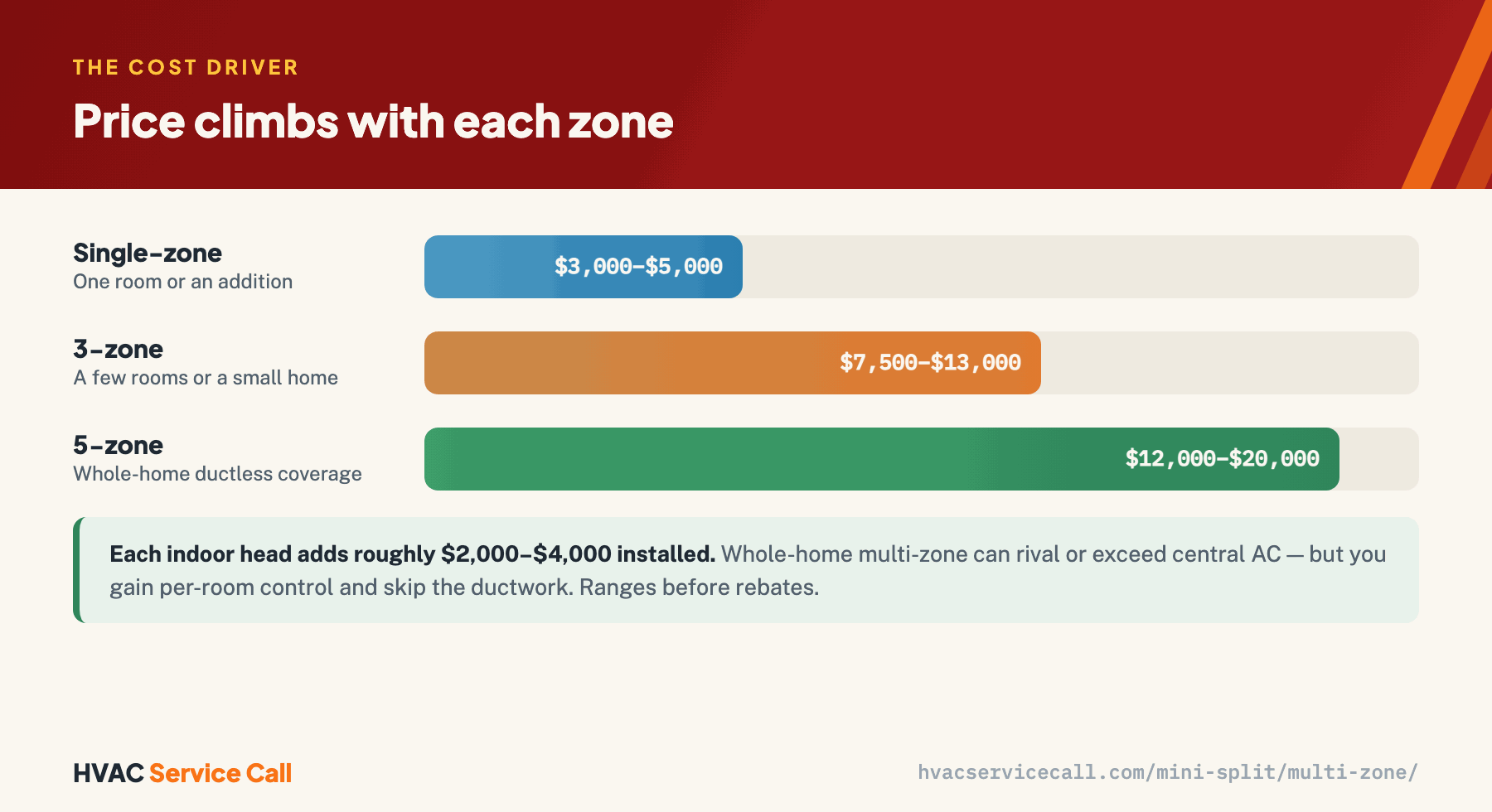

How much does a multi-zone mini split cost?
Price scales almost directly with zones, because each indoor head is its own install. A single-zone system runs about $3,000–$5,000; a three-zone setup for a few rooms or a small home roughly $7,500–$13,000; and a five-zone whole-home system about $12,000–$20,000. Figure roughly $2,000–$4,000 for each head you add. At the high end, whole-home multi-zone can rival or exceed central air — what you're buying for the difference is per-room control and no ductwork.
Whole-project pricing: HVAC installation cost.

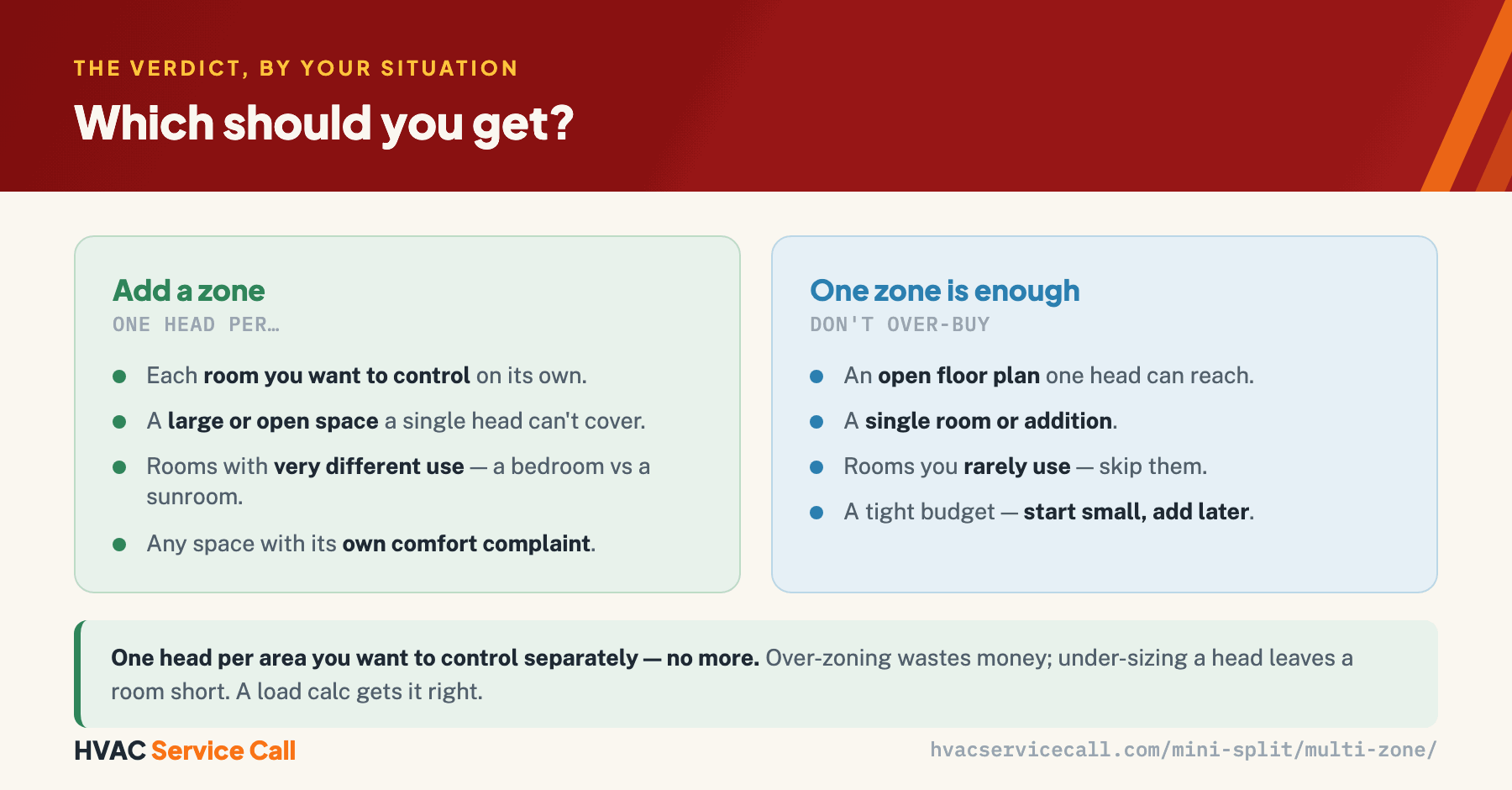

How many zones do you actually need?
The honest answer is one head per area you genuinely want to control on its own — and no more, because over-zoning just adds cost. Give a dedicated head to each room you'll set differently, to a large or open space a single head can't reach, and to any room with its own comfort complaint. But an open floor plan can often be served by one well-placed head, rooms you rarely use can be skipped, and on a tight budget you can start with the zones that matter and expand later (up to the outdoor unit's capacity). Getting the count and the head sizes right is what a proper load calculation is for.
One call routes you to a licensed local contractor to size the zones and quote it: (888) 810-2291.
More terms: mini split glossary.
Common questions
What is a multi-zone mini split?
A multi-zone mini split is a ductless system where one outdoor unit runs several indoor heads — typically two to five — each with its own thermostat. Every head conditions its own zone, so different rooms can hold different temperatures on a single system, with no ductwork.
How many zones do I need?
Roughly one indoor head per room or area you want to control independently. A studio or open plan might need one; whole-home coverage often runs three to five zones. Rooms you rarely use can be skipped, and a large open space may need one larger head rather than several.
How much does a multi-zone mini split cost?
It scales with zone count. A single-zone system runs about $3,000–$5,000 installed, a three-zone roughly $7,500–$13,000, and a five-zone whole-home setup about $12,000–$20,000. Each indoor head adds roughly $2,000–$4,000, which is why the number of zones is the biggest cost driver.
Is a single-zone or multi-zone mini split better?
Neither is universally better — it depends on how many areas you're conditioning. Single-zone is cheaper and often the most efficient for one room or an addition. Multi-zone covers a whole home with per-room control, at a cost that climbs with each head you add.
Can I add zones to a mini split later?
Sometimes, but not always — a multi-zone outdoor unit supports a fixed number of heads, so you can add up to its capacity but not beyond. If you expect to expand, it's worth sizing the outdoor unit for the future heads from the start rather than replacing it later.
Do multi-zone mini splits heat as well as cool?
Yes — the heads are heat pumps, so a multi-zone system heats and cools each room on the same equipment. In mild-to-moderate climates it carries the whole season; in deep cold, cold-climate models hold output far below freezing.
Are more zones less efficient?
A multi-zone system is slightly less efficient than a matched single-zone one, because one compressor serves several heads at varying loads. It's still far more efficient than ducted central air, since there are no duct losses — the trade is a small efficiency dip for whole-home, room-by-room control.
